Sunday 20 December 2015

Course Update

This past week we have managed to install all the sprinkler decoders that had been removed and sent for testing in Auckland. With the decoders in ground we ran several tests through the decoder diagnostics tool on our computer and once I was satisfied that everything was working correctly all the holes were filled back in, levelled and seeded in any bare areas.
Another job that had been hanging around for a little while was a pipe leak repair on the 10th fairway. The leak was in a 150 mm pipe mainline and with the dry weather we have been having I was waiting for some rain so if there was any delay in the repair it wouldn't affect our irrigation too much. As it turned out we had quite a rain and hailstorm last Sunday which provided a good opportunity to shut the system down and make the repair.
Storm clouds approaching

Draining the pipeline

Mainline with tee pieces

Faulty 150mm pipe removed from tee piece

The finished repair

The damaged pipe worn by water pressure

With the irrigation repair finished and back-filled the golf course had returned to normal playing condition for the first time since mid July. We haven't had the course free of holes on fairways, tees or rough since July because of all the searching for faults and repairs we were making to get the irrigation system operating properly. With this year nearing the end I am hoping that 2016 brings us less trying conditions so that we can concentrate on maintaining and grooming the golf course.

Sunday 6 December 2015

Course Update

After many months looking for wiring faults in our irrigation system we have finally found the major cause of our problems. The decoder interface had an intermittent fault that eventually worsened to the point that it failed completely and we had no power to the course at all. Fortunately we were supplied a temporary interface until a new one could be shipped from overseas. We are now full operational with the new LDI installed.
We have sent our suspect decoders to Auckland for testing and are waiting for them to be returned so that we can finish the repairs to the system and fill in the holes on the fairways.
New LDI installed
Now the irrigation system has been sorted we have been able to do more regular mowing and maintenance around the course. The fairways are starting to show the benefits of more regular mowing and areas of the rough are really starting to be defined with the dry weather burning off  the grass and the seedhead growing and lengthening.
Regular fairway mowing and rough drying out
With more regular watering and limited preseason maintenance done on the system due to chasing our electrical issues we were bound to have some problems crop up. One of or pumps had a fuse burn out, several pipe leaks have appeared and an unusual pipe problem at another pump shed recently appeared.
Deformed, leaking pipe at pump shed 3









Sunday 11 October 2015

Course update

Sorry for the long delay between posts but it has been a frustrating time dealing with the issues with our irrigation system. The problems that we had with the irrigation wiring still hasn't been resolved fully but as of last night I have been able to run an automatic cycle successfully for the first time this season. We have made repairs to dozens of damaged sections of cable, replaced or isolated about 15 decoders that have malfunctioned and replaced about 60 old cable joiners. With all of these areas being repaired or isolated we are still getting an inconsistent line current that can't be located by myself or the Rainbird technician. We will continue our search for the fault as time permits as we are now in full swing with spring mowing, wetting agent program and fertilising.

On a more positive note we have just completed our greens renovation program. With our irrigation system being in a fragile state I decided to do a light renovation to the greens because I was unsure I would be able to actually apply enough water to get full recovery.
I decided to vertidrain with 8mm solid pencil tynes to a 150mm depth 25 mm apart. This would give us lots of holes through the greens profile that would allow good penetration of the irrigation water when it is applied. The greens were also double verticut to remove excess leaf and lightly topdressed to smooth the surface. The greens were then brushed and rolled to get the sand into the turf canopy. Once this process was completed all greens were treated with a long term (3 month) wetting agent and washed in with the irrigation system. We achieved all of this on Monday and Tuesday and were back open on Wednesday for the mid week comp with minimal surface disruption. Below are some photos of the process.
vertidrain with 8mm solid tynes

closeup of the vertidrain holes

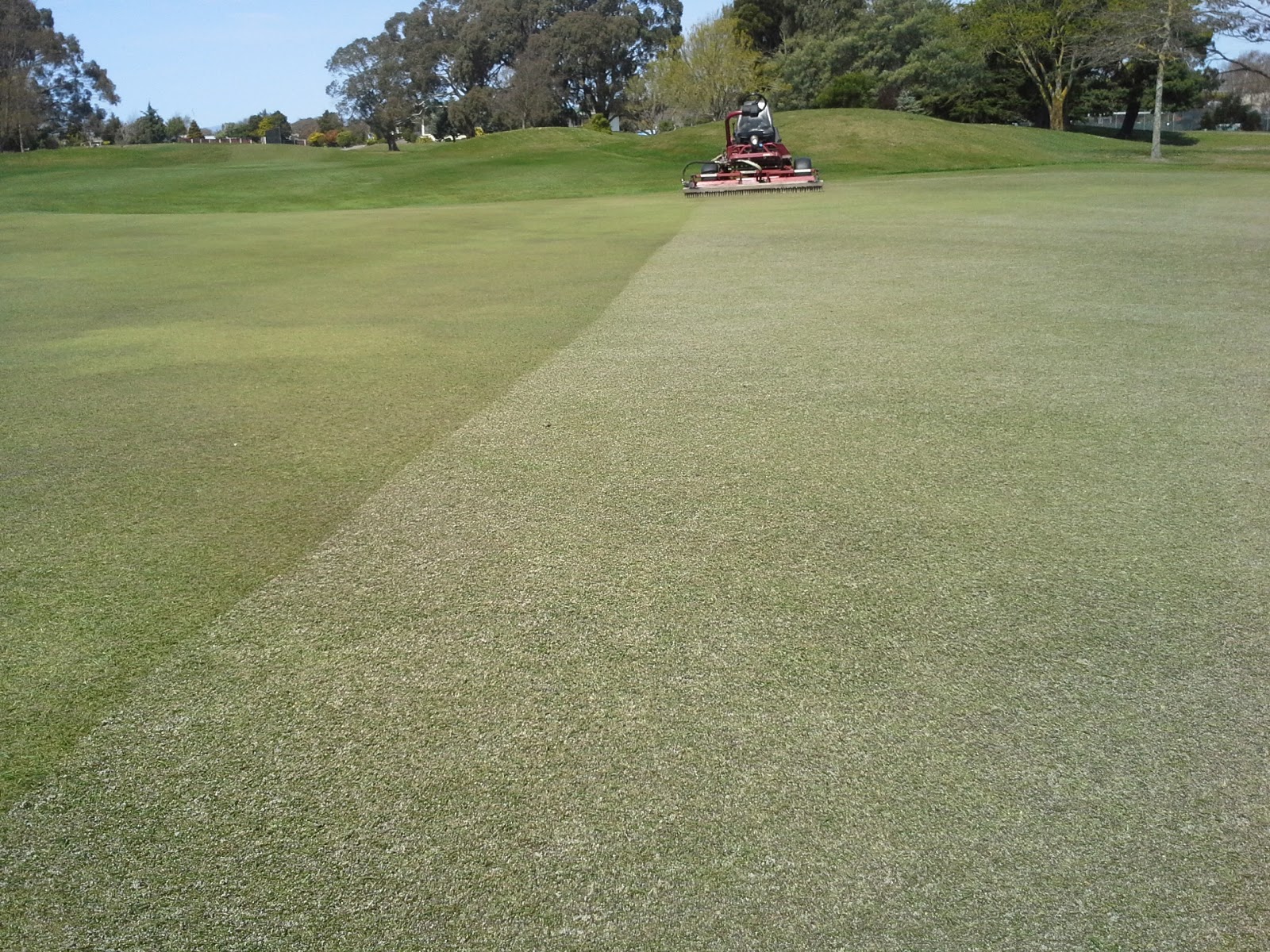

green after verticutting

topdressing being brushed in

closeup of the brush and rollers



Friday 14 August 2015

Irrigation control cable fault finding update

Since the last post when I mentioned that we had a fault in the control cable we started to go through the entire irrigation system to track down any problems before we need to fire up the system in spring. This has now turned into a major hunt for damage to the control cable as at one point the system had totally shut down. For the last 4 weeks we have constantly been fault finding the system and as the golfers would have noticed we have had to dig holes all over the course locating possible bad joins, damaged cable and faulty decoders.

Faulty decoder

Cable that appears to be stretched  under a pipe with fused sand around the exposed wire



Vertidrain damage to shallow cable

More damaged cable

Cracks in the cable insulation


Two cables shorted together

Two more cables shorted together

Over the course of  the last 4 weeks we have replaced 3 faulty or shorted decoders, replaced dozens of  faulty joiners, cut out about 12 areas of damaged cable and have been continually tracing and testing cable over the entire course. At the moment we still don't have a functioning irrigation system despite all our efforts. We have had advice and help from the local Rainbird technician and  he is coming in on Tuesday for the day to see if he can get to the bottom of our problems. The issues we are having appear to be a combination of  the age of the components in the system (25 years or older), the fact that we have had massive ground upheaval with over 15,000 earthquakes and aftershocks and in some instances poor installation practises.
At this point I'm not discounting damage to the irrigation control unit as one of the sources of the problems so hopefully we can get this tested Tuesday when the technician visits.

Tuesday 7 July 2015

Course Update

Since the last post we have managed to vertidrain the fairways one more time taking advantage of the relatively dry conditions. By creating more channels in the soil profile we have a better the chance of getting rid of surface water when we do get heavy rainfall.

We have kept an eye on the water table recently on an area on our 17th fairway where we had dug a sump. Last winter the water table was sitting at just 300mm below the level of the fairway. At the moment we haven't hit the water table and we have dug down 600mm. All very promising with us reaching the middle of our winter.


We haven't reached the water table at 600mm

One of the downsides to vertidraining areas of the golf course is the damage it can cause to the irrigation control cable. As I have mentioned previously there are areas of cable that have been installed at a shallow depth and every now and again we strike the cable with the machine and we eventually lose power to the watering system. This has been the case recently on an area where the fairway had been extended closer to the ladies tee. Unfortunately this area had the cable installed at approximately 75mm depth and at some point the tynes of the vertidrain had punctured the cable casing and damaged the wire.
Once this problem has been repaired we will check the entire course with the cable locator and check for any other problem areas so that we are in good shape for the summer watering season.

Setting up the cable locator

Cable damage

Cable installed 75mm deep


Wednesday 17 June 2015

Nice frost

Today has started with a -3.8 degree frost that will stay around for some time. We are one of the few courses in Canterbury that allow play during a frost so we do our best to limit damage by asking members to keep cart travel off the fairways and away from greens. I must say I don't see what the attraction is in playing golf in these conditions.

18th fairway
9th green
Trundler marks that will be black tomorrow
Keen golfers

Sunday 17 May 2015

Course Update

We have now finished the vertidraining of all fairways and are in a bit better position as far as drainage goes if we start getting more frequent rainfall. I have recently checked the water table level on the 17th fairway to see how we are looking compared to this time last year. The water table at the moment is about 500mm below the fairway surface (this time last year it was at 300mm below the surface) so we have more chance of the fairway draining in the event of a large amount of rain falling.

One thing to point out at the moment is the continual loss of gum trees around the course. For no particular reason, large well established gum trees are dying in random places around the course. The latest gum tree to die is between the 2nd fairway and 17th tee and is the fifth large gum tree to die within the last 2-3 months.
Dead gum near the 17th tee

With the onset of cooler, damper conditions we are always on the lookout for diseases that can occur this time of year. The main disease we get this time of year is Fusarium and mainly affects the greens. We normally have a couple of areas that tend to show signs of disease and these indicator greens guide us on when or if we spray to treat the problem. Recently these hot spots increased in activity so we decided to get a fungicide out on all greens to protect them from major damage as the environmental conditions were very favourable for the spread of Fusarium.
Typical signs of Fusarium

Another recent irrigation repair was made to the control cable near the back of the 11th green. A fault appeared and we had no communication to any sprinklers down the 10th and 11th fairways so I knew that a cable was severed. As we had recently finished vertidraining I suspected a shallow cable was cut. Knowing roughly the position of the cable and what sprinklers were affected I worked out that the damage was done in an area not recently vertidrained. It turns out that it was old damage from vertidraining surrounds that suddenly gave out.
Cable damage near the 11th green (note the burnt ends of the cable totally separating the wire)

Recently we had a heavy morning fog which closed in suddenly leaving the golf course looking very eerie. Below are some photos from the 10th fairway.





Thursday 30 April 2015

Course Update

It has been a while since the last post so I thought I would update everyone about what has been happening. With short working weeks with Easter and Anzac Day, as well as being short staffed due to a family bereavement, it has been fairly slow progress with the fairway vertidraining.
We will finish all vertidraining early next week and it should help with removing surface water when we eventually get heavy rainfall. This month has bought a change in weather with cooler conditions, regular rainfall without any downpours and some strong winds. Winter is just around the corner.

The cooler weather has bought about a slow down in turf growth so the mowing has reduced and cutting heights have been raised slightly to maintain good turf density through winter. One issue we deal with this time of year is the increased number of worm castings on the surface of the fairways. The castings get smeared on the surface with machinery, golf carts and foot traffic and the fairways look quite muddy. A few years ago we had a chemical that had good long term control of the worms, but unfortunately that is now off the market and there is nothing that is available that has good control and not too expensive. We are trying to acidify the surface of the fairways with regular applications of Sulphate of Ammonia to try and discourage the worms. This will be an ongoing process.


Monday 23 March 2015

Fairway Vertidraining


We have started vertidraining the fairways with 18mm solid tynes to try and break up the hardpan under the surface. At the moment we are concentrating on the low areas on fairways that caused us problems last year with ponding for long periods of time after we received heavy rain early last year.

We have had a report done on our drainage issues in these areas by NZSTI and one of the recommendations in that report was to try and shatter the layer of  heavy, silty loam that sits on top of the sand profile. Our worst layer is on the 17th fairway which is more than 300mm thick in places and vertidraining will only punch down to about 250mm deep. I am hoping that we have some shattering affect that will crack through the layer in places and give us better water infiltration when we do get heavy rain. At least we will have a lot more air space in the soil profile that will hold more moisture when it does rain and hopefully get it away from the surface.

At the moment we have vertidrained the low areas on the 8th, 9th &17th fairways 3 times and increased the tyne depth 25 mm each time because the ground is so hard and the machine can't cope with full depth straight away. We are now at 175mm deep and will probably need to tyne these areas at least 3 more times before we are at our maximum depth. When we have completed these areas we will start on all fairways before winter hits. Most of our fairway drain fairly well because we don't have many areas with thick layers of silty loam so these won't need to be treated so severely and to such a depth. We should be able to easily punch holes down to 150-175mm without much problem as long as we avoid shallow pipework and cable which is always a possibility.



vertidrain with 18mm solid tyned

vertidrain holes in one of the hardpan areas on 17th fairway

Sunday 8 March 2015

Rain

Overnight our weather station recorded 11.7mm of rainfall which is the highest single rain event in 24 hours since 18/6/14.
Our yearly total for 2015 of  42.6mm is down half on the historical average of 83mm for the first 2 months of the year and our total of 123.9mm for the last 6 months is also down more than half on the historical average of 268mm.
Overnight rainfall data

Soaking rain on Friday
I hope this change of seasons doesn't bring the rainfall that we received in March & April of last year where we were saturated in several parts of the golf course.


Sunday 1 March 2015

Course Update

 This week we are seeing continued progress on the greens after the renovations with good turf growth and filling in of the tyne holes. The sand has mostly disappeared and we are gradually lowering the mowing height. In fact Saturday morning we were back to 4mm height but because of the excessive leaf growth it is still a bit furry. By the end of this week we should be pretty much back to normal conditions on the putting greens.
Good turf cover after 10 days

This week we vertidrained the tees to keep the water infiltration continuing through the soil profile. We are still having warm, dry conditions so this procedure helps with getting water to where the turf needs it - the rootzone.
Vertidraining the 5th tee

We also had to make an irrigation repair to a section of old, grey PVC pipe behind the 7th green. Because it was in quite a sandy area we didn't become aware of it until Tuesday. The leaking water would go straight to ground until a big enough hole appeared in the pipe and it then showed at the surface.



Next week's weather looks like continuing the trend of warm conditions with Monday forecast to be 31degrees. There is some rain in the forecast later in the week so fingers crossed, we get a good dumping of rain to freshen things up. Because of our irrigation systems capacity, it isn't possible to get the required amount of water to the fairways during a run of very warm to hot weather. We irrigate tees and greens to their needs but have to hold back on the fairways a bit or we end up running sprinklers all morning.

Sunday 22 February 2015

Course Update

This week has been quite productive with all greens being renovated with solid 12mm tynes and topdressed with turf sand. We had great weather for the 2 days the course was closed for renovations and we were able to get the sand brushed into the core holes reasonably well by the time we opened the course on Wednesday. As is usual after renovations the greens will be quite furry for a while because it takes a while for the turf to grow through the sand and get the cutting height of the mowers back to normal height. We do this for several reasons - (1) we don't want to pick up the sand in the cutting units and damage the blades, and (2)  the turf is quite tender after the abrasive affects of rubbing the sand into the turf surface and we don't want to stress the plant more at an early stage of recovery.
12mm solid tynes at 150mm depth

Turf sand spread on 11th green

Cushman topdresser

During the week we also vertidrained the surrounds of the greens. While the greens and surrounds have been opened up with solid tyning we have taken the opportunity to treat them again with wetting agent and heavily watered the product to get it into the soil profile. This application will get us into early winter with hopefully a good, even moisture content through the soil profile.

One negative occurrence during the week was a damaged irrigation control cable near the 6th green that was caused by the vertidrain. Over the years we have vertidrained the surrounds of this green half a dozen times with out ever hitting the cable. This time the cable was severed and we found it using a cable locator(borrowed from Richard at Waitikiri GC) about 75-100mm below the surface. I am quite sure that this won't be the last time we hit a shallow cable because the reality is we don't know for sure where every bit of cable runs, and at what depth. In this situation we uncovered quite a length of cable and proceeded to repair it and bury it at a depth of 350mm where it won't be in danger of being hit with machinery in the future.

Cable break when hit by the Vertidrain



Irrigation cable at a shallow depth
